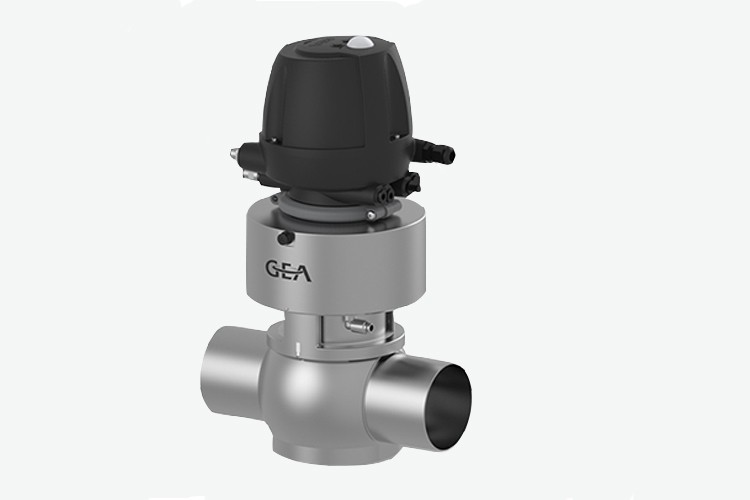

Single Seat T-smart

With T-smart, GEA offers a valve concept with basic functions, designed for economical processes. For T-smart a deliberate decision was made not to offer a large number of options – for the benefit of the user. T-smart, of course, still provides all the variants and equipment options (e.g. housing combinations, various sealing materials, feedback systems) required by the process. Shut-off Valves, series T-smart are EHEDG certified.

Technical Details

  • CONNECTION DIAMETER

    DN25-DN100, OD1”-OD4”

  • BODY MATERIAL

    AISI 316L

  • SEAL MATERIAL

    EPDM

  • PRESSURE

    up to 6 bar

  • TEMPERATURE

    up to 150 °C

  • INTERNAL FINISH

    Ra<0.8 µm

Advantages

  • EHEDG certification
  • Small and compact
  • Low maintenance
  • Body fully welded
  • Manual and pneumatic actuator
